Test Modules

For the liquid or gas to be separated, this test module is the first step test before the machine test

test-modules

Product Use

The test modules are for basic experiment for your application. If you have an idea, you’re welcome to contact us and ask whether NAGASEP is suitable for your application. Then, if we think it might work, you could buy one or two test modules for the basic experiment.

The purchase process would go as follows:

① quotation(EXW)

② bank transfer

③ manufacture

④ shipment (mostly by Fedex)

⑤ after sale support for 1 year

動画再生
The test modules are for basic experiment for your application. If you have an idea, you’re welcome to contact us and ask whether NAGASEP is suitabe for your application. Then, if we think it might work, you could buy one or two test modules for the basic experiment. The purchase process would go as follows:
  • quotation(EXW)
  • bank transfer
  • manufacture
  • shipment (mostly by Fedex)
  • after sale support for 1 year
動画再生

Internal Perfusion

Untreated liquid/gas flows inside the hollow fiber. Simple and compact design. With its lesser stress loss, suitable for treating large flow rate. The untreated liquid moves like turbulence that leads to higher contact efficiency.

External Perfusion

Untreated liquid/gas flows outside the hollow fiber. Functions: Degassing and debubbling.

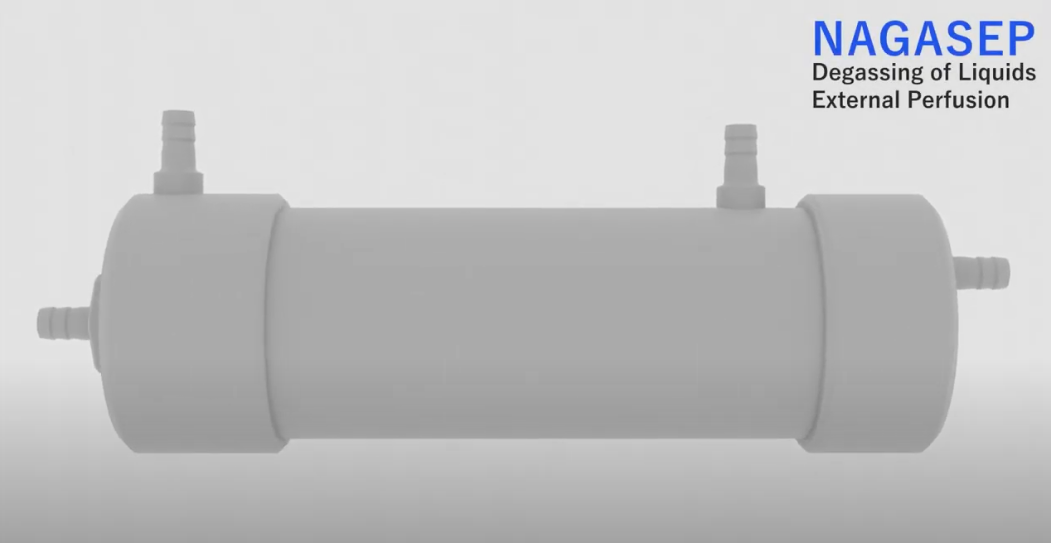

In external perfusion type, we use the weaved silicone fibers. The weavement is wrapped in multiple layers around a thick PC tube (material optional) in the center of the module. The fiber lines in the video only represent the direction of the flow.

動画再生

Specifications

In M30, M40, M60 and M80 the number represents thethickness of the membrane. For example, we call a fiber membrane M30 when its outer diameter is 230μm, while the inner diameter is 170μm. (230 – 170) ÷ 2= 30μm, so it is M30. Thinner membrane promises higher gas permeation, while thicker membrane have higher pressure resistance.

We recommend M60 for liquid degassing, M40 for gas separation.

Scroll horizontally to see full content
SpecificationM30-AM30-BM40-AM40-BM60-AM60-BM80-AM80-BM100-AM100-B
Active Membrane Area0.19㎡0.38㎡0.20㎡0.40㎡0.24㎡0.49㎡0.22㎡0.44㎡0.15㎡0.30㎡
Hollow Fiber MaterialSiliconeSiliconeSiliconeSiliconeSiliconeSiliconeSiliconeSiliconeSiliconeSilicone
Hollow Fiber Dimensionφ 0.17x0.23mmφ 0.17x0.23mmφ 0.17x0.25mmφ 0.17x0.25mmφ 0.2x0.32mmφ 0.2x0.32mmφ 0.20×0.36mmφ 0.20×0.36mmφ 0.30×0.50mmφ 0.30×0.50mm
Number of Fibers3000600030006000300060002500500012002400
Housing MaterialPolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonate
Sealing MaterialSilicone
(Silicone rubber)
Silicone
(Silicone rubber)
Silicone
(Silicone rubber)
Silicone
(Silicone rubber)
Silicone
(Silicone rubber)
Silicone
(Silicone rubber)
Silicone
(Silicone rubber)
Silicone
(Silicone rubber)
Silicone
(Silicone rubber)
Silicone
(Silicone rubber)
Cap Diameter D1(φ) ㎜47544754475447544754
Main Body Diameter D2(φ) ㎜34413441344134413441
Heat Resistance120℃120℃120℃120℃120℃120℃120℃120℃120℃120℃
Maximum Differential Pressure0.1MPa0.1MPa0.2MPa0.2MPa0.2MPa0.2MPa0.2MPa0.2MPa0.2MPa0.2MPa
Price
(*No Shipping Fee Included)
JPY 30000JPY 45000JPY 30000JPY 45000JPY 30000JPY 45000JPY 30000JPY 45000JPY 30000JPY 45000
ItemM60-4500×100-F(Internal Perfusion)M60-4500-100-C(External Perfusion)
MaterialSilicone hollow fiber membraneSilicone (fabric)
HousingPolycarbonatePolycarbonate
Sealing MaterialSilicone (Silicone rubber)Silicone(Silicone rubber)
Membrane outer diameter μm320320
Membrane inner diameter μm200200
Number of membranes4,5004500
Effective area 0.37m²0.37m²
Maximum differential pressure0.3MPa0.3MPa
Heat resistance 120℃(Autoclavable)120℃(Autoclavable)

*The data provided in these tables are for reference only
